| Brand | BEL |
| Access Method | ACCESS CONTROL |
| Holding Force | 600 LBS |
| Ideal For | Sliding Doors |
| Finish Type | Stainless Steel |
| Model Name/Number | EM-600 MORTICE |
| Unlocking Mode | FAIL-SAFE |
| Features | EM LOCK FOR SLIDING DOORS |
| Usage/Application | ACCESS CONTROL SYSTEMS |
| Certification | UL LISTED |
| Voltage Input | 12 VDC / 24 VDC |
| Current Draw | 12V / 480mA ; 24V / 240mA (+- 5%) |
| Holding Force (Max) | 600 lbs (272 kg) |
| Dry Reed Contact (Max) | 100VDC,0.25A,3W |
| Anti-Rust Surface Treatment | Blue Zinc Plating |
| Operating Temperature | 0~55 Degree C ( 32~131 Degree F) |
| Operating Humidity | 0~95% ( non condensing) |
| Weight ( Magnet) | 1.0 kg (+- 1%) |
| Dimensions | (L)228x(W)38x(T)27 mm |

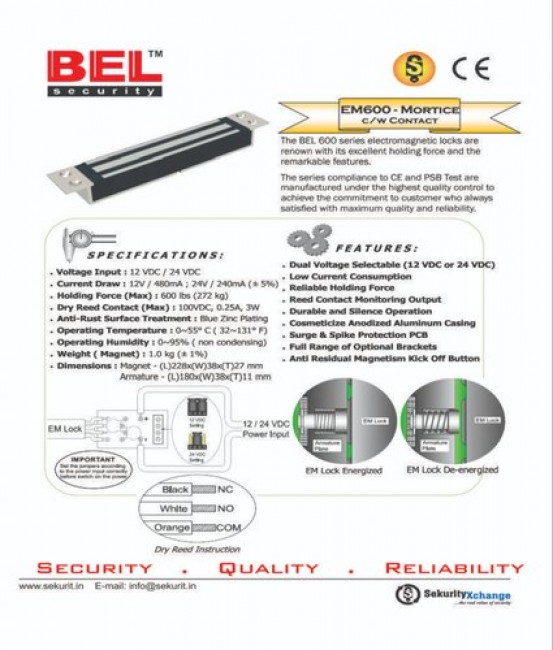

The BEL 600 series electromagnetic locks arerenown with its excellent holding force and theremarkable features.The series compliance to CE and PSB Test aremanufactured under the highest quality control toachieve the commitment to customer who alwayssatisfied with maximum quality and reliability.
