| Access Method | ACCESS CONTROL SYSTEMS |
| Key Card Type | ACCESS CONTROLLER |
| Brand | BEL |
| Ideal For | WOODEEN AND GLASS DOORS |
| Finish Type | ANODISED ALUMINUM |
| Features | EM LOCK WITH RELAY OUTPUT |
| Usage/Application | ACCESS CONTROL SYSTEMS |
| Country of Origin | Made in India |

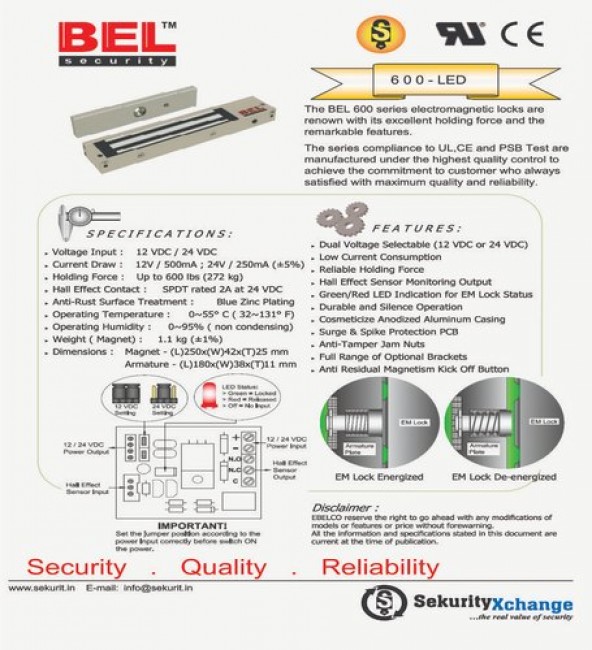

| Voltage Input | 12 VDC / 24 VDC |
| Current Draw | 12V / 500mA ; 24V / 250mA (+-5%) |
| Holding Force | Up to 600 lbs (272 kg) |
| Hall Effect Contact | SPDT rated 2A at 24 VDC |
| Anti-Rust Surface Treatment | Blue Zinc Plating |
| Operating Temperature | 0~55 Degree C ( 32~131 Degree F) |
| Operating Humidity | 0~95% ( non condensing) |
| Weight ( Magnet) | 1.1 kg (+-1%) |
| Dimensions | (L)250x(W)42x(T)25 mm |

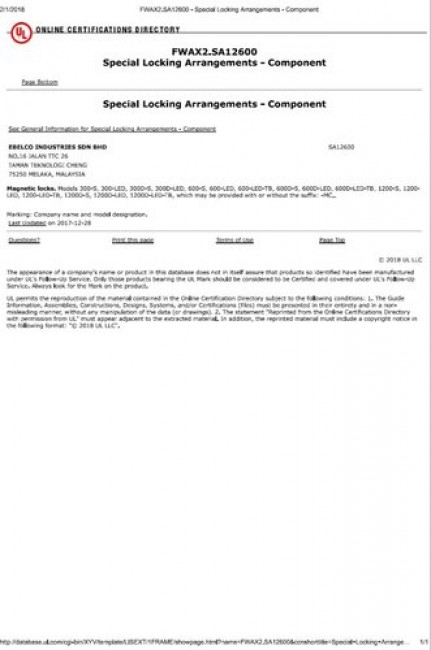

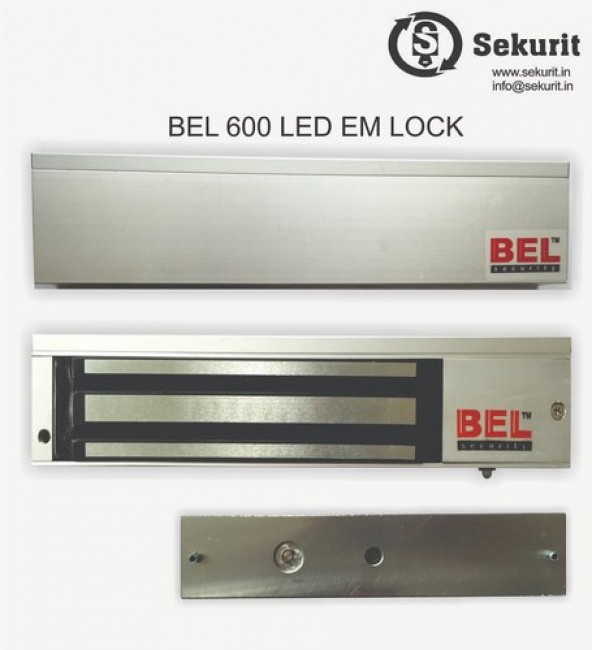

The BEL 600 series electromagnetic locks arerenown with its excellent holding force and theremarkable features.The series compliance to UL,CE and PSB Test aremanufactured under the highest quality control toachieve the commitment to customer who alwayssatisfied with maximum quality and reliability.
