| Lock Type | UL LISTED DOUBLE LEAF EM LOCK |
| Brand | BEL |
| Access Method | ACCESS CONTROL |
| Ideal For | WOODEN & GLASS DOORS |
| Finish Type | ANODISED ALUMINUM |

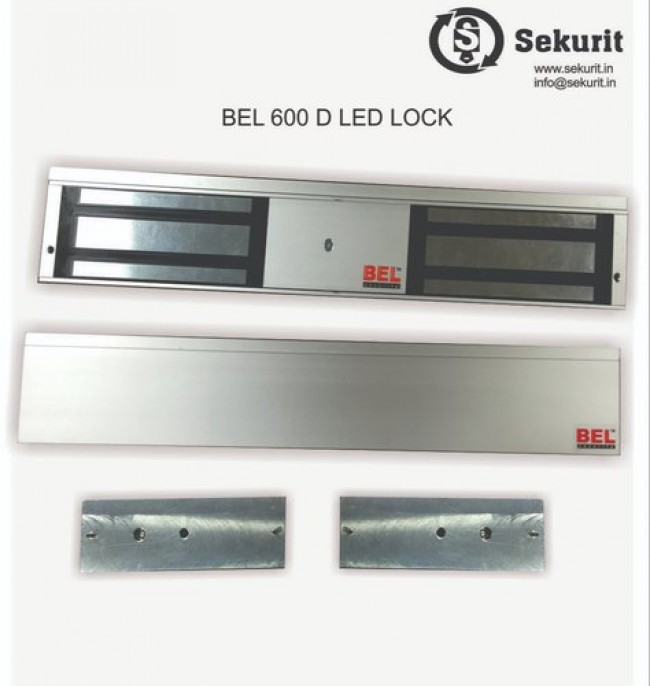

| Model Name/Number | BEL-600-D-LED |
| Material | ANODISED ALUMINIUM |
| Unlocking Mode | FAIL-SAFE |
| Features | DOUBLE LEAF EM LOCK WITH HALL SENSOR OUTPUT |
| Usage/Application | ACCESS CONTROL SYSTEMS |
| Operating Temperature | 0~55 Degree C ( 32~131 Degree F) |
| Voltage Input | 12 VDC / 24 VDC (per Magnet) |
| Current Draw | 12V / 500mA ; 24V / 250mA (+-5%) |
| Holding Force | Up to 600 lbs x2 (272 kg x2) |
| Hall Effect Contact | SPDT rated 2A at 24 VDC |
| Magnetic Contact Rating | 28 VDC, 0.5A, 10W |
| Anti-Rust Surface Treatment | Blue Zinc Plating |
| Operating Humidity | 0~95% ( non condensing) |
| Weight ( Magnet) | 2.2 kg (+-1%) |
| Dimensions | (L)500x(W)42x(T)25 mm |

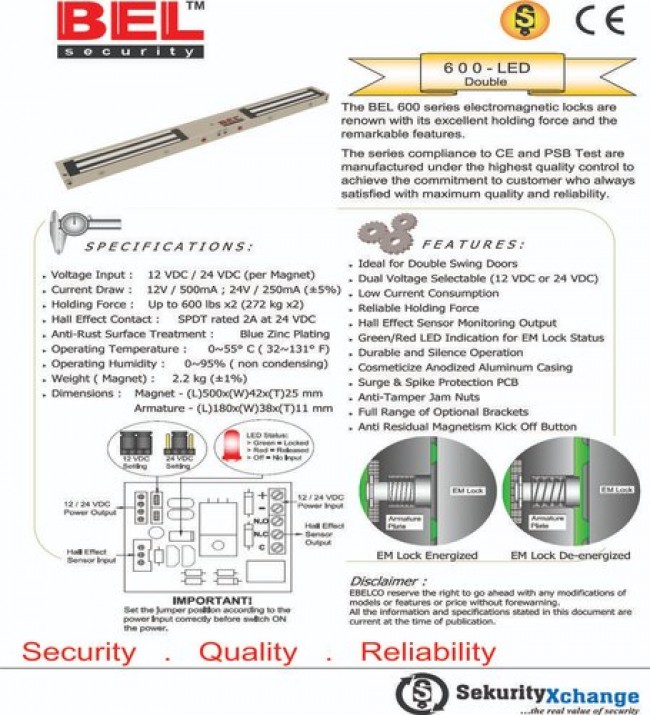

The BEL 600 series electromagnetic locks arerenown with its excellent holding force and theremarkable features.The series compliance to CE and PSB Test aremanufactured under the highest quality control toachieve the commitment to customer who alwayssatisfied with maximum quality and reliability.
