| Access Method | ACCESS CONTROL SYSTEMS |
| Key Card Type | ACCESS CONTROLLER |
| Brand | BEL |
| Ideal For | WOODEEN AND GLASS DOORS |
| Finish Type | ANODISED ALUMINUM |
| Input Voltage | 12 VDC / 24 VDC |
| Features | BEL MINI SIZE EM LOCK |
| Usage/Application | ACCESS CONTROL SYSTEMS |
| Current Draw | 12V / 320mA ; 24V / 160mA (+-5%) |
| Holding Force | Up to 300 lbs (136 kg) |
| Hall Effect Contact | SPDT rated 2A at 24 VDC |
| Anti-Rust Surface Treatment | Blue Zinc Plating |
| Operating Temperature | 0~55 Degree C ( 32~131 Degree F) |
| Operating Humidity | 0~95% ( non condensing) |
| Weight ( Magnet) | 0.7 kg (+-1%) |
| Dimension | (L)210x(W)35x(T)21 mm |

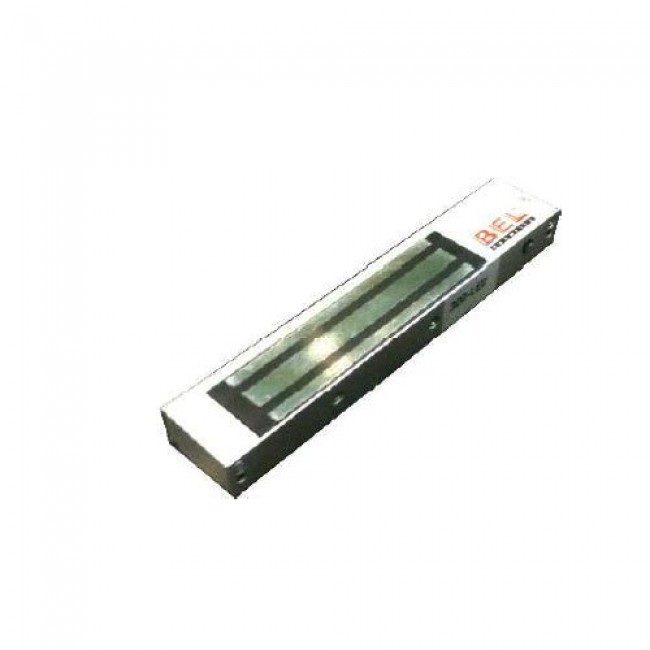

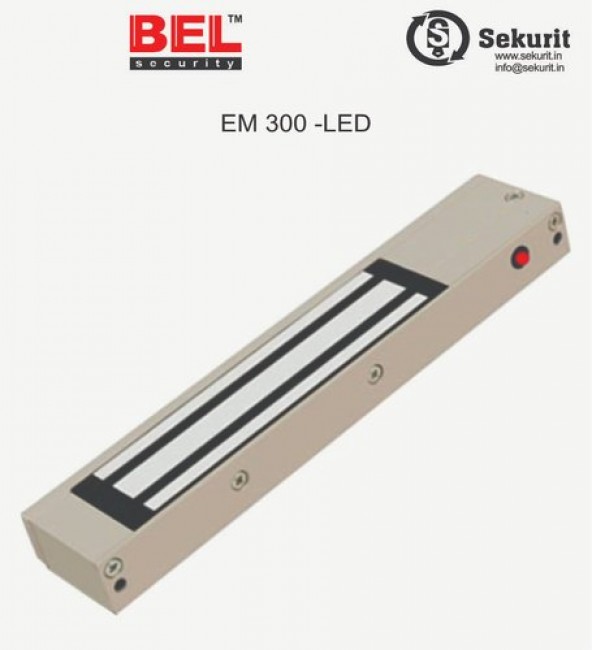

,MEDIUM SIZE EM LOCK The BEL 300 series electromagnetic locks are renownwith its holding force in compact size and theremarkable features.The series with CE compliance are manufacturedunder the highest quality control to achieve thecommitment to customer who always satisfied withmaximum quality and reliability.
