Brand | BEL |
Access Method | ACCESS CONTROL |
Ideal For | Main Door |
Finish Type | ANODISED ALUMINUM |

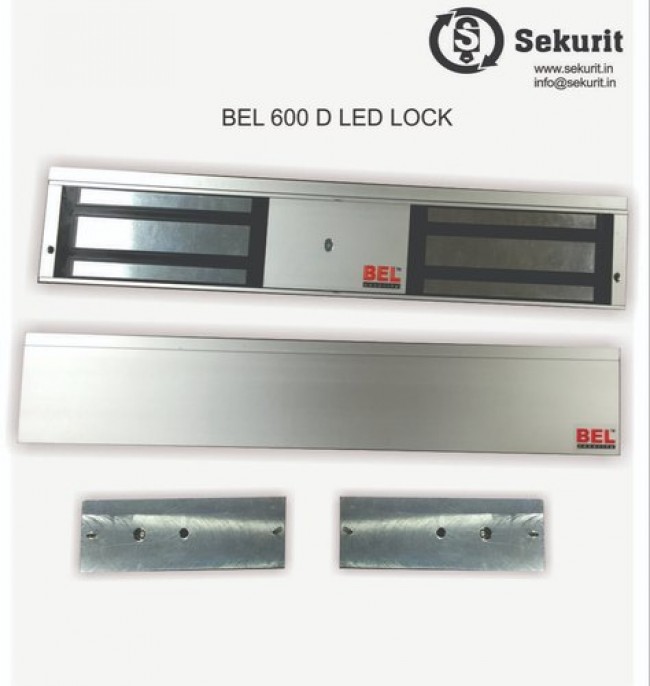

Model Name/Number | BEL-600-D-LED |
Unlocking Mode | FAIL-SAFE |
Features | UL LISTED DOUBLE LEAF LOCK |
Usage/Application | ACCESS CONTROL SYSTEMS |
Voltage Input | 12 VDC / 24 VDC (per Magnet) |
Current Draw | 12V / 500mA ; 24V / 250mA (+-5%) |
Holding Force | Up to 600 lbs x2 (272 kg x2) |
Hall Effect Contact | SPDT rated 2A at 24 VDC |
Anti-Rust Surface Treatment | Blue Zinc Plating |
Operating Temperature | 0~55 Degree C ( 32~131 Degree F) |
Operating Humidity | 0~95% ( non condensing) |
Weight ( Magnet) | 2.2 kg (+-1%) |
Dimensions | (L)500x(W)42x(T)25 mm |

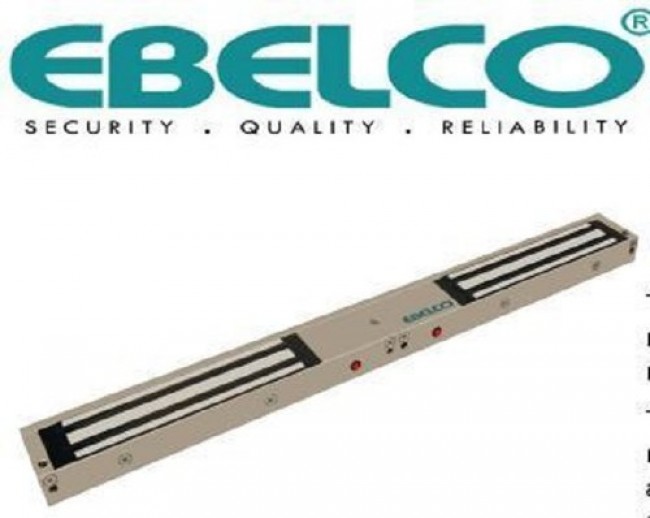

The BEL 600 series electromagnetic locks arerenown with its excellent holding force and theremarkable features.The series compliance to CE and PSB Test aremanufactured under the highest quality control toachieve the commitment to customer who alwayssatisfied with maximum quality and reliability.
